The difference between fire-resistant and fireproof cables

- GUANGSHUNCABLE -

Flame-retardant cables, as the name suggests, refer to cables that, under specific test conditions, when ignited and the fire source is removed, the spread of the flame is limited within a certain range and can extinguish itself within a specified time. Its core feature lies in "flame retardancy", that is, through material or structural design, it slows down or stops the spread of flames, thereby protecting the surrounding environment from the threat of fire spread.

Structural features: All or part of the components of flame-retardant cables are made of flame-retardant materials, which can form a carbonized layer at high temperatures, isolating oxygen and slowing down the burning rate. Flame-retardant cables are further classified into halogen-containing flame-retardant cables and halogen-free low-smoke flame-retardant cables based on whether they contain halogen or not. Although the former can effectively resist fire, it will produce a large amount of toxic gases and smoke when burning, which is not conducive to fire fighting and rescue. The latter, by adding halogen-free flame retardants, not only maintains excellent flame retardant performance but also significantly reduces smoke emission and toxic gas emissions, making it more environmentally friendly and safe.

Advantages and disadvantages: The advantage of flame-retardant cables lies in their relatively low cost and their ability to effectively control the spread of fire, thereby enhancing the overall fire protection level. However, it cannot guarantee that the cable itself will not be damaged in a fire. Once the cable is damaged, the circuit will be interrupted, affecting the operation of the equipment.

Unlike flame-retardant cables, fire-resistant cables emphasize the ability to maintain the normal operation of the line for a period of time under burning conditions. This means that even if a fire breaks out in the surrounding environment, fire-resistant cables can maintain their structural integrity, continue to transmit power or signals, provide continuous power supply for key systems such as fire-fighting equipment and emergency lighting, and buy precious time for personnel evacuation and fire-fighting rescue.

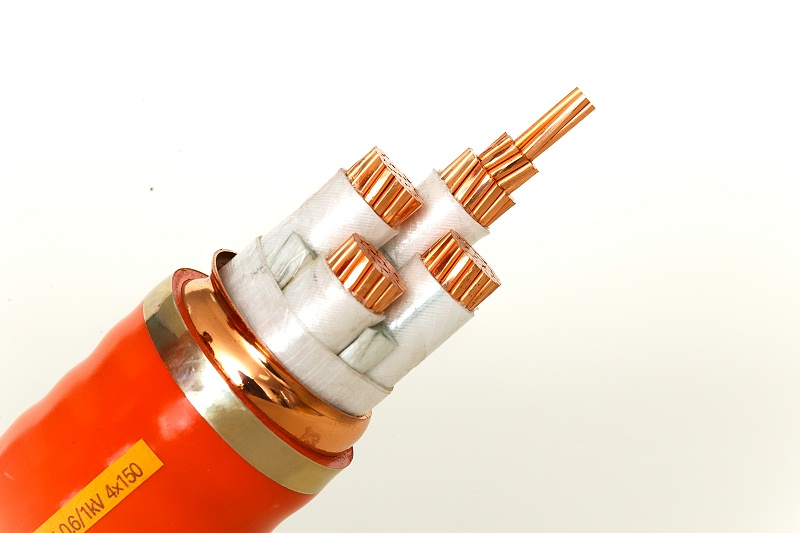

Structural features: Fire-resistant cables have an additional fire-resistant layer between the conductor and the insulation layer, which is usually made of high-temperature resistant materials such as mica tape. This fire-resistant layer can remain stable at high temperatures, preventing flames from directly eroding the conductor, thus ensuring that the cable can still operate normally after long-term burning.

Principle differences: The flame retardant principles of flame-retardant cables are diverse. Halogen-containing cables rely on the flame retardant effect of halogens, while halogen-free cables suppress combustion by lowering the temperature. Fire-resistant cables, on the other hand, mainly rely on the physical isolation effect of the fire-resistant layer, especially the excellent high-temperature resistance of mica materials.

Advantages and disadvantages: The greatest advantage of fire-resistant cables lies in their ability to maintain normal power supply for a period of time during a fire, significantly enhancing the reliability and safety of the system. At the same time, it generates a small amount of acid gas smoke, causing little harm to the environment and human health. However, due to its special structure and material requirements, the cost of fire-resistant cables is relatively high, and their installation and maintenance are also more complex.

Although flame-retardant cables and fire-resistant cables are both types of fire-resistant cables, their focuses are different. Flame-retardant cables focus on preventing the spread of fire and protecting the surrounding environment. Fire-resistant cables, on the other hand, emphasize maintaining the integrity of the circuit during a fire and ensuring the continuous operation of critical equipment. In practical applications, the appropriate type of cable should be selected based on specific requirements and scenarios. For instance, in crowded places or important facilities, fire-resistant cables are highly favored for their higher safety. In general industrial or civil buildings, flame-retardant cables are widely used due to their higher cost-effectiveness ratio.

With the continuous advancement of technology and the increasing demand for safety performance, the technology of fire-resistant cables and flame-retardant cables will be continuously optimized and upgraded in the future, providing a strong guarantee for building a safer and more reliable power transmission system.
